CAMEO®DISK
Grinding and polishing are key steps in the preparation of a metallographic sample. It is the quality of these steps which will condition and optimise the rest of the process. At the end of the grinding step, the sample’s aspect must be uniform and regular without altering the inherent flatness and the material. The CAMEO®DISK’s performances in terms of stock removal reduce the work time on the part, thereby guaranteeing the sample’s inherent flatness, an indispensable condition to succeed with your metallographic analyse.
Grinding and polishing are key steps in the preparation of a metallographic sample. It is the quality of these steps which will condition and optimise the rest of the process. At the end of the grinding step, the sample’s aspect must be uniform and regular without altering the inherent flatness and the material. The CAMEO®DISK’s performances in terms of stock removal reduce the work time on the part, thereby guaranteeing the sample’s inherent flatness, an indispensable condition to succeed with your metallographic analyse.

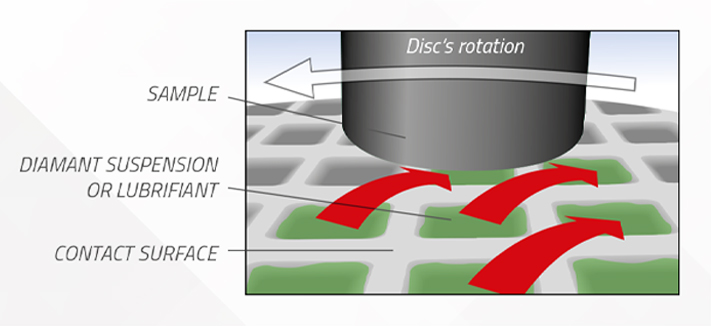

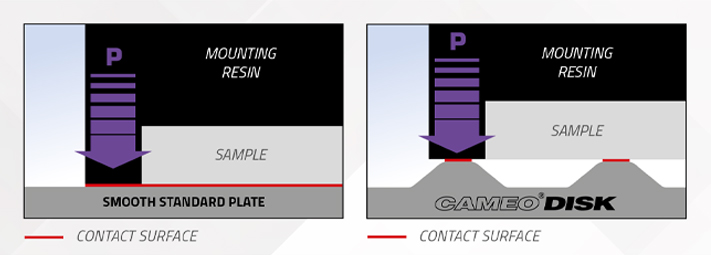

| Stock removal The CAMEO®DISK honeycomb cell structure allows decreasing the surface in contact with the sample to be polished. The pressure required to grind the sample is much less than that generally applied during the use of a solid disc. The equipment is less stressed and the risks of tearing out the grinding disc are significantly reduced.  |

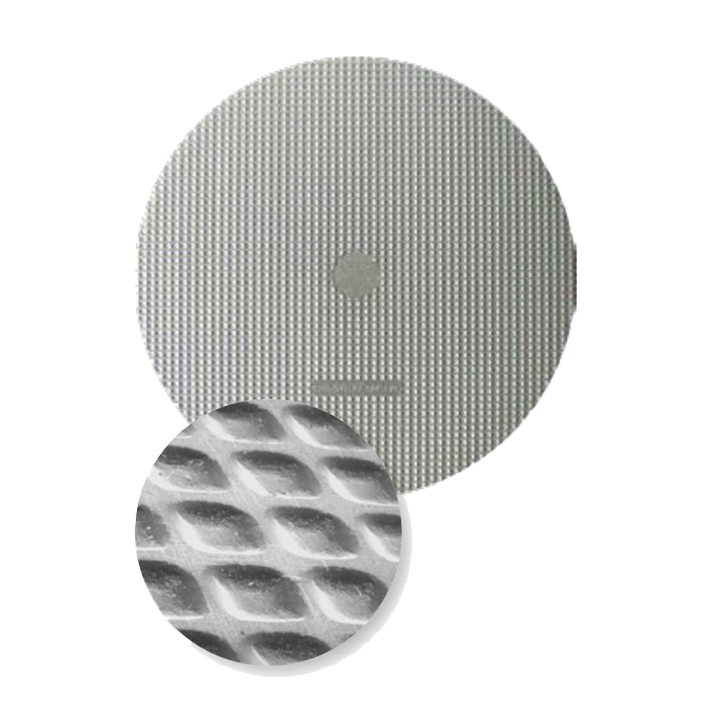

 A patented honeycomb cell structure |
| Reproducibility The profile of the honeycomb cells was specially designed to optimize the circulation of the lubricant from one cavity to another. The abrasion residues are evacuated, guaranteeing a constant abrasive power and therefore a regularity of the result throughout the grinding and polishing steps. |
 |
 |
Reproducibility The profile of the honeycomb cells was specially designed to optimize the circulation of the lubricant from one cavity to another. The abrasion residues are evacuated, guaranteeing a constant abrasive power and therefore a regularity of the result throughout the grinding and polishing steps. |

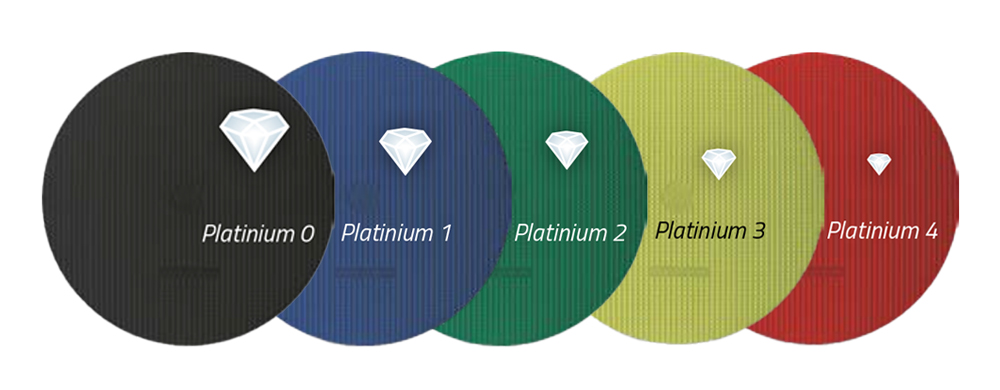

| CAMEO®DISK Platinium The CAMEO®DISK Platinium are diamond discs (fixed abrasive) that are ideal for rapid grinding of metallographic samples.

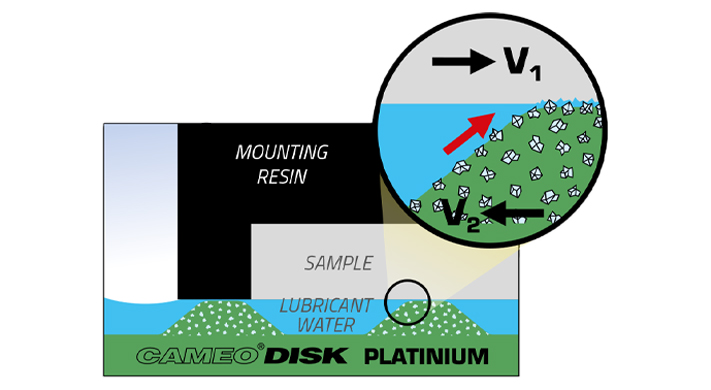

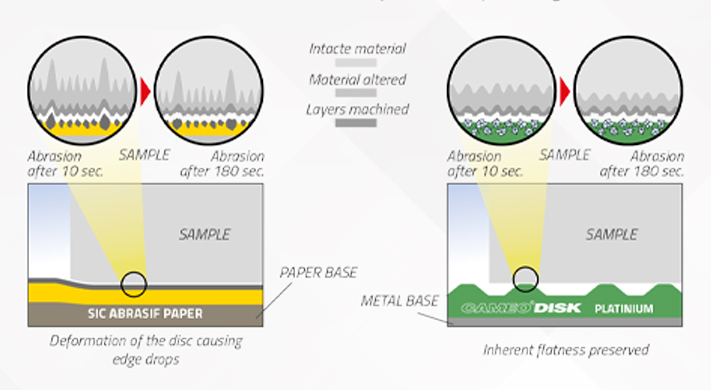

The use of diamond integrated in the CAMEO®DISK Platinium honeycomb cell structure allows for preserving a constant stock removal throughout the operation, which prevents the appearance of edge drops, including on samples of heterogeneous hardnesses.
|
 |
Boxes of 1 piece + 1 dressing stone
| Diamond Grinding Disk | Color Distinction | Self-adhesive | Magnetic | |
|---|---|---|---|---|
| Ø in mm | Ref. | Ref. | ||
| CAMEO DISK No. 0 | Brown | 200 | 09 CA170 20 | 09 A570 20 |
| 230 | 09 CA170 30 | 09 CA570 30 | ||
| 250 | 09 CA170 40 | 09 CA570 40 | ||
| 300 | 09 CA170 50 | 09 CA570 50 | ||
| CAMEO DISK No. 1 | Blue | 200 | 09 CA140 20 | 09 CA540 20 |
| 230 | 09 CA140 30 | 09 CA540 30 | ||
| 250 | 09 CA140 40 | 09 CA540 40 | ||
| 300 | 09 CA140 50 | 09 CA540 50 | ||
| CAMEO DISK No. 2 | Green | 200 | 09 CA150 20 | 09 CA550 20 |
| 230 | 09 CA150 30 | 09 CA550 30 | ||
| 250 | 09 CA150 40 | 09 CA550 40 | ||
| 300 | 09 CA150 50 | 09 CA550 50 | ||
| CAMEO DISK No. 3 | Yellow | 200 | 09 CA160 20 | 09 CA560 20 |
| 230 | 09 CA160 30 | 09 CA560 30 | ||
| 250 | 09 CA160 40 | 09 CA560 40 | ||
| 300 | 09 CA160 50 | 09 CA560 50 | ||
| CAMEO DISK No. 4 | Red | 200 | 09 CA180 20 | 09 CA580 20 |
| 230 | 09 CA180 30 | 09 CA580 30 | ||
| 250 | 09 CA180 40 | 09 CA580 40 | ||
| 300 | 09 CA180 50 | 09 CA580 50 | ||

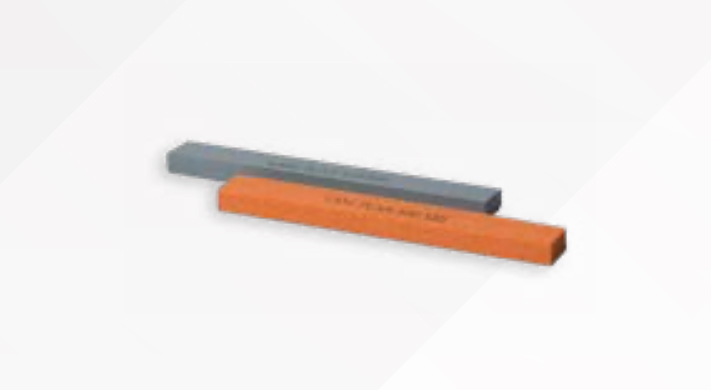

ABRASIVE STONES FOR PLATINUM
| Type | Characteristics | Qty. | Ref. |
|---|---|---|---|
| Grain 120 for platinum 0 & 1 | 6 x 13 x 100 mm | 2 | 98 59121 00 |
| Grain 400 for platinum 2 | 6 x 13 x 100 mm | 2 | 98 59401 00 |
| Grain 600 for platinum 3 & 4 | 6 x 13 x 100 mm | 2 | 98 59601 00 |
Application Table
| CAMEO®DISK | Equivalences | Application | Fluid/Liquid |
|---|---|---|---|
| Platinum 0 Brown | Sic Paper P80 | Grinding hard material | Water |
| Platinum 1 Blue | Sic Paper P120 | ||
| Platinum 2 Green | Sic Paper P240 | ||
| Platinum 3 Yellow | Sic Paper P600 | ||
| Platinum 4 Red | Sic Paper P1200 |
GUIDANCE
In order to guarantee constant results, the CAMEO®DISK has to be periodically dressed with adequate abrasive stones.
In order to guarantee constant results, the CAMEO®DISK has to be periodically dressed with adequate abrasive stones.
CAMEO®DISK Silver, Gold & Rhodium

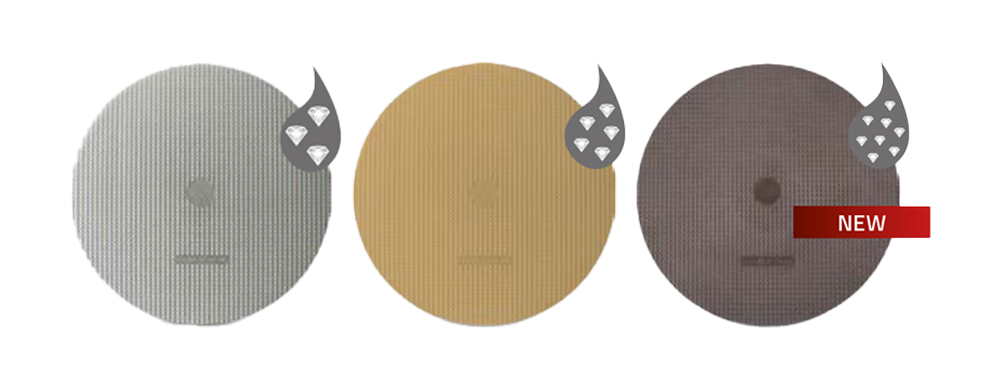

The CAMEO®DISK Silver, Gold & Rhodium discs are non-diamond grinding discs developed to be used with Bio DIAMANT® abrasive products (free abrasives.) Combined with the latest products of the Bio DIAMANT® range, the NEODIA® diamond abrasives will allow treating all types of materials.
 |

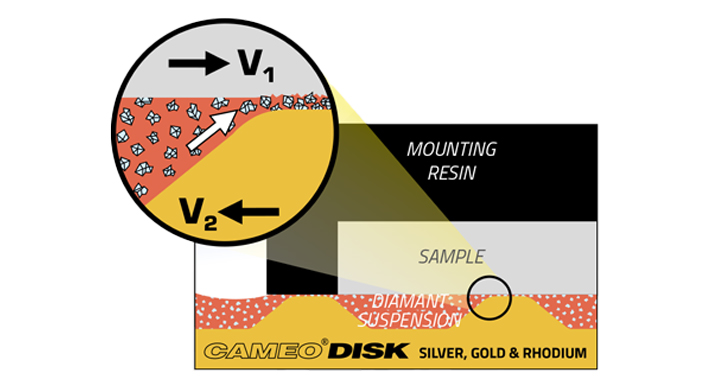

The patented CAMEO®DISK honeycomb structure allows the uniform distribution of the periodically pulverized diamond abrasive suspension. The use of the abrasive suspension is optimized, thereby reducing the diamond product’s consumption. There are three variants of CAMEO®DISK designed with differing hardness suited for different types of material prepolished. |
| Pre-polished disc | Color Distinction | Self-adhesive | Magnetic | |
|---|---|---|---|---|
| Ø in mm | Ref. | Ref. | ||
| CAMEO DISK SILVER | Silver | 200 | 09 CA120 20 | 09 CA520 20 |
| 230 | 09 CA120 30 | 09 CA520 30 | ||
| 250 | 09 CA120 40 | 09 CA520 40 | ||
| 300 | 09 CA120 50 | 09 CA520 50 | ||
| CAMEO DISK GOLD | Gold | 200 | 09 CA130 20 | 09 CA530 20 |
| 230 | 09 CA130 30 | 09 CA530 30 | ||
| 250 | 09 CA130 40 | 09 CA530 40 | ||
| 300 | 09 CA130 50 | 09 CA530 50 | ||
| CAMEO DISK RHODIUM | Rhodium | 200 | 09 CA100 20 | 09 CA500 20 |
| 230 | 09 CA100 30 | 09 CA500 30 | ||
| 250 | 09 CA100 40 | 09 CA500 40 | ||
| 300 | 09 CA100 50 | 09 CA500 50 | ||
DIAMOND DRESSING TOOL FOR SILVER, GOLD & RHODIUM
| Characteristics | Qty. | Ref. |
|---|---|---|
| 100 x 15 x 5 mm | 1 | 98 BD001 00 |
Application Table
| CAMEO®DISK | Application | Fluid/Liquid |
|---|---|---|
| Silver | Medium to very hard ferrous alloys | 6 to 15 μm diamond abrasives |
| Gold | Soft non-ferrous alloys | 3 to 6 μm diamond abrasives |
| Rhodium | Ceramics and Cermets | NEODIA® M, P or F |
GUIDANCE
In order to guarantee constant results, the CAMEO®DISK has to be periodically dressed with adequate abrasive stones.
In order to guarantee constant results, the CAMEO®DISK has to be periodically dressed with adequate abrasive stones.
