| BIO DIAMANT® abrasive suspension For many years, the LAM PLAN R&D department has been committed to developing advanced products that are more user-oriented and aimed to preserve the environment without compromising effectiveness.
LAM PLAN sets up all the arrangements needed for its application in order to guarantee the quality and availability of all its products over the long term. All the substances contained in our preparations comply with the REACH regulation’s specifications. To facilitate your administrative formalities, all the Safety Data Sheets (SDS) of our products conform to the legislation in force can be downloaded on www.fds.lamplan.com |
 |

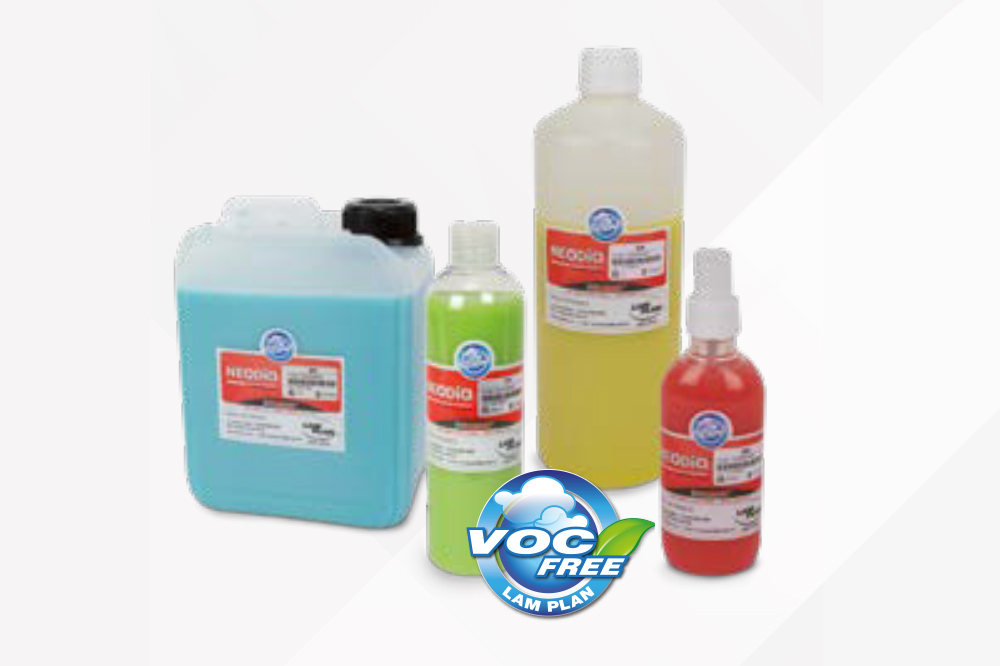

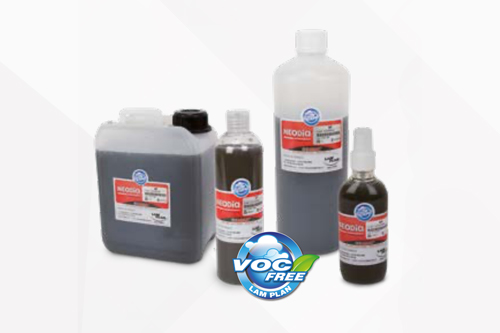

| BIO DIAMANT® ABRASIVE SUSPENSION NEODIA® In direct line with our famous Bio DIAMANT® range, the NEODIA® diamond abrasive suspension goes even further in terms of performance, efficiency, and user comfort. The NEODIA®diamond suspension is a top-of-the-range product featuring exceptional performance. |
  |
Enhance roughness The quality of the abrasive used, the tight criteria of calibration and concentration, as well as the use of a new generation of water-based binders, allow better roughness results while preserving a high stock removal. The binder consistency allows the cutting action to start at the first seconds of usage. Free of VOCs The NEODIA® diamond suspensions are composed of a specific new-generation binder; this liquid is free of Volatile Organic Compounds (VOCs). The NEODIA® diamond suspensions are of course biodegradable at more than 70 % in accordance with the criteria of our Bio DIAMANT® label. Non-toxic and harmless, they are neutral, and the user’s work conditions are thus respected. Biodegradable packaging: reduction of your activity’s environmental impact For the first time in the polishing industry, a diamond suspension is packaged in a plastic bottle of vegetal origin which is 100% biodegradable and compostable according to the standard NF EN 13 432 (for 200 and 400 ml packaging). |

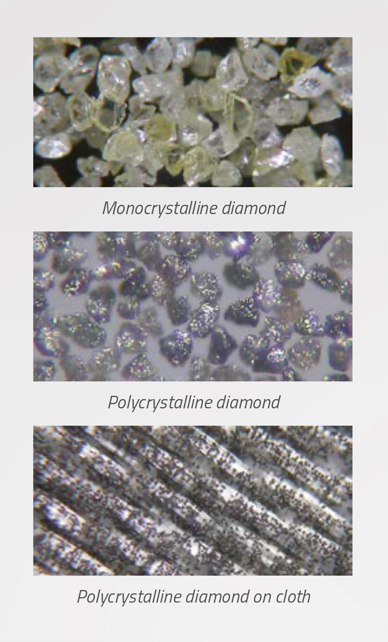

| BIO DIAMANT® ABRASIVE SUSPENSION NEODIA®M High performance suspension, high concentration of monocrystalline diamonds, biodegradable with no decantation.
|
 |
| 200 ml with vaporiser | Refill 400 ml (sold without spray) | Refill 1 l (sold without spray) | Refill 2,5 l (sold without spray) | ||
|---|---|---|---|---|---|
| Type | μm | Ref. | Ref. | Ref. | Ref. |
| 1/4 M | 1/4 | 02 97460 80 | 02 97460 60 | 02 9746 20 | 02 97460 30 |
| 1 M | 1 | 02 01460 80 | 02 01460 60 | 02 01460 20 | 02 01460 30 |
| 2 M | 2 | 02 02460 80 | 02 02460 60 | 02 02460 20 | 02 02460 30 |
| 3 M | 3 | 02 03460 80 | 02 03460 60 | 02 03460 20 | 02 03460 30 |
| 6 M | 6 | 02 06460 80 | 02 06460 60 | 02 06460 20 | 02 06460 30 |
| 9 M | 9 | 02 09460 80 | 02 09460 60 | 02 09460 20 | 02 09460 30 |
| 14 M | 14 | 02 14460 80 | 02 14460 60 | 02 14460 20 | 02 14460 30 |
-3% off for the purchase of 3 products of the same reference
| BIO DIAMANT® ABRASIVE SUSPENSION NEODIA®P High-performance suspension, high concentration of polycrystalline diamonds, biodegradable with no decantation.
|
 |
| 200 ml with vaporiser | Refill 400 ml (sold without spray) | Refill 1 l (sold without spray) | Refill 2,5 l (sold without spray) | ||
|---|---|---|---|---|---|
| Type | μm | Ref. | Ref. | Ref. | Ref. |
| 1/4 P | 1/4 | 02 97469 80 | 02 97469 60 | 02 97469 20 | 02 97469 30 |
| 1 P | 1 | 02 01469 80 | 02 01469 60 | 02 01469 20 | 02 01469 30 |
| 2 P | 2 | 02 02469 80 | 02 02469 60 | 02 02469 20 | 02 02469 30 |
| 3 P | 3 | 02 03469 80 | 02 03469 60 | 02 03469 20 | 02 03469 30 |
| 6 P | 6 | 02 06469 80 | 02 06469 60 | 02 06469 20 | 02 06469 30 |
| 9 P | 9 | 02 09469 80 | 02 09469 60 | 02 09469 20 | 02 09469 30 |
| 14 P | 14 | 02 14469 80 | 02 14469 60 | 02 14469 20 | 02 14469 30 |
-3% off for the purchase of 3 products of the same reference

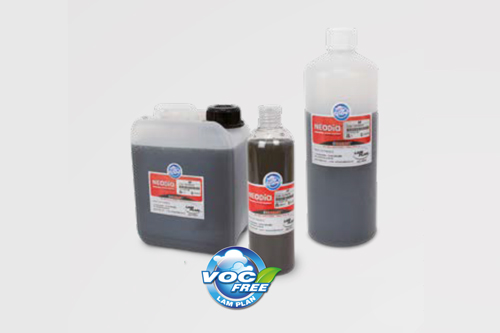

BIO DIAMANT® NEODIA®F LIQUID
A new generation of ready-to-use abrasive suspensions containing polycrystalline diamonds. The NEODIA® F is optimized for automatic dosage by spray (Venturi system). Its formulation and its price make it useful for intensive usage.
| 400 ml | 1 l | 2,5 l | ||
|---|---|---|---|---|
| Type | μm | Ref. | Ref. | Ref. |
| 1F | 1 | 02 01470 60 | 02 01470 20 | 02 01470 30 |
| 3F | 3 | 02 03470 60 | 02 03470 20 | 02 03470 30 |
| 6F | 6 | 02 06470 60 | 02 06470 20 | 02 06470 30 |
| 9F | 9 | 02 09470 60 | 02 09470 20 | 02 09470 30 |
| 14F | 14 | 02 14470 60 | 02 14470 20 | 02 14470 30 |
-3% off for the purchase of 3 products of the same reference

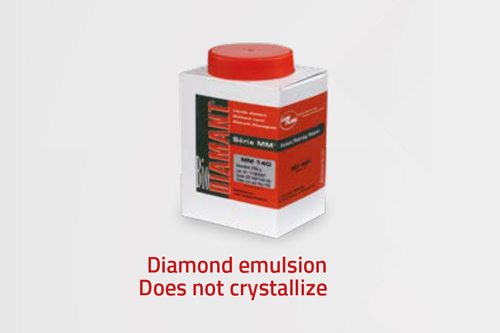

BIO DIAMANT® M.M.140 FINISHING LIQUID
High-yield emulsion for the finishing of all materials.
High-yield emulsion for the finishing of all materials.
High concentration. Cleaning with solvent or detergent 742.
| Characteristics | Type | Conditioning | Ref. |
|---|---|---|---|
| Diamond emulsion. Does not crystallize. |
M.M.140 | 250 gr | 02 MM140 00 |

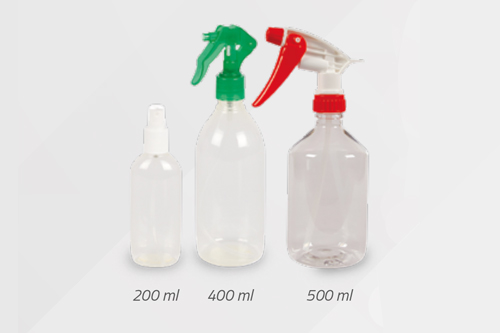

Manual distributors to be filled
| Designation | Qty. | Ref. |
|---|---|---|
| 200 ml biodegradable bottle + White vaporiser | 1 | 08 00514 00 |
| 400 ml biodegradable bottle + Green spray | 1 | 08 00513 00 |
| Green spray | 1 | 08 00503 00 |
| 500 ml PET bottle + white and red spray |
1 | 08 00502 00 |
-5% off for the purchase of 3 products of the same reference
| Model | Description | Characteristics | Type | Conditioning | Ref. |
|---|---|---|---|---|---|

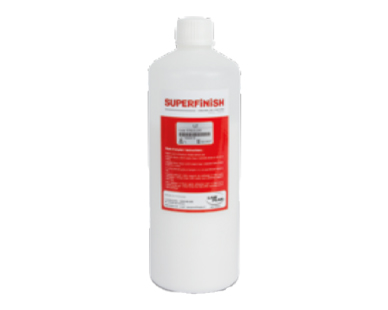

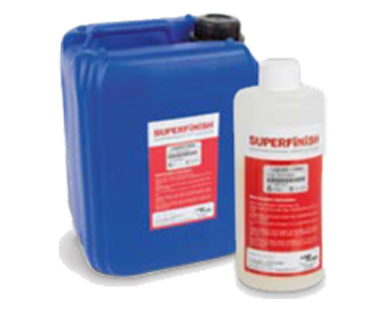

 FINAL FINISHING LIQUID |
Aqueous suspension of non-agglomerated nanometric silica stabilized in an alkaline medium. Used to carry out super finishing, to obtain ultra-low roughness. Very easy to use and applicable to all types of materials. Does not crystallize. Usage recommendation: Dilute 10 to 20% in water. |
Final polishing on polishing cloth. All materials. |
Final liquid | 500g | 05 NL008 00 |
| Final liquid | 5 litres | 05 NL008 40 | |||

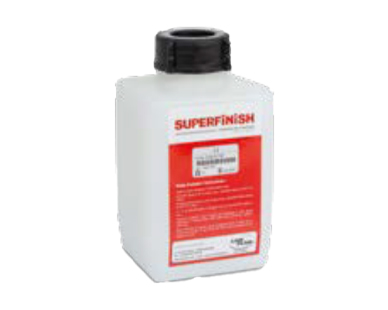

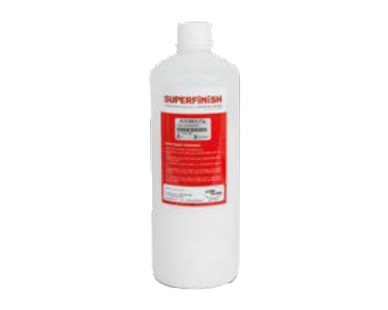

 L1 FINISHING LIQUID |
Final polishing suspension specially formulated for mechano-chemical polishing. During usage, the active substances of the solution embrittle the surface to be polished, thereby optimizing the efficiency of the abrasive grains. Allows combining performance (stock removal) and polishing quality. Recommended for titanium and its alloys. Usage recommendation: ready-to-use preparation. |
Final polishing on polishing cloth. All materials. |
L1 liquid Titanium | 1 litre | 05 NL0L1 00 |
 L2 FINISHING LIQUID |
Composite solution of ceramic oxides and silica. Ideal to prepare your surface before the super finishing step. Recommended for the polishing of aluminum and its alloys. Usage recommendation: ready-to-use preparation. |
Final polishing on polishing cloth. All materials. |
L2 liquid Aluminium | 1 litre | 05 NL0L2 00 |
 ALPLAN LIQUIDS |
New final polishing solutions composed of aluminum oxides of a very high purity. These alumina preparations are subjected to a pushed de-agglomeration treatment; which results in excellent polishing quality. Easy-to-use, ALPLAN solutions are usable on all types of materials. Usage recommendation: Use pure or diluted up to 50% with water. |
ALPLAN is used pure or diluted up to 50% with water |
0,05 μm | 1 litre | 05 AP005 00 |
| 0,25 μm | 1 litre | 05 AP025 00 | |||
| 1 μm | 1 litre | 05 AP100 00 | |||
| 3 μm | 1 litre | 05 AP300 00 |
